Minelab Vanquish 540 Metal Detector
In stock
0.00
(0 reviews) Write a review

Description

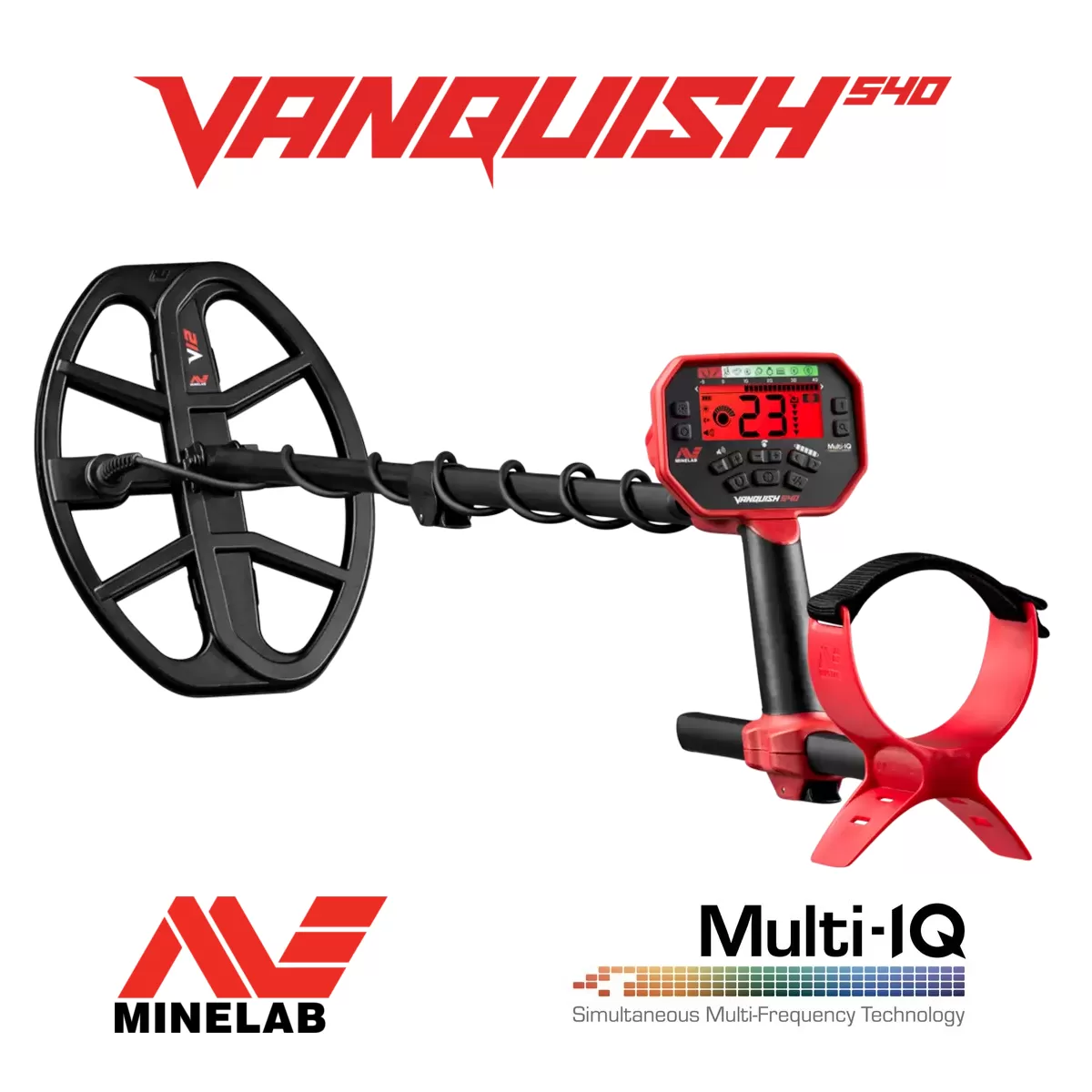

Vanquish 540

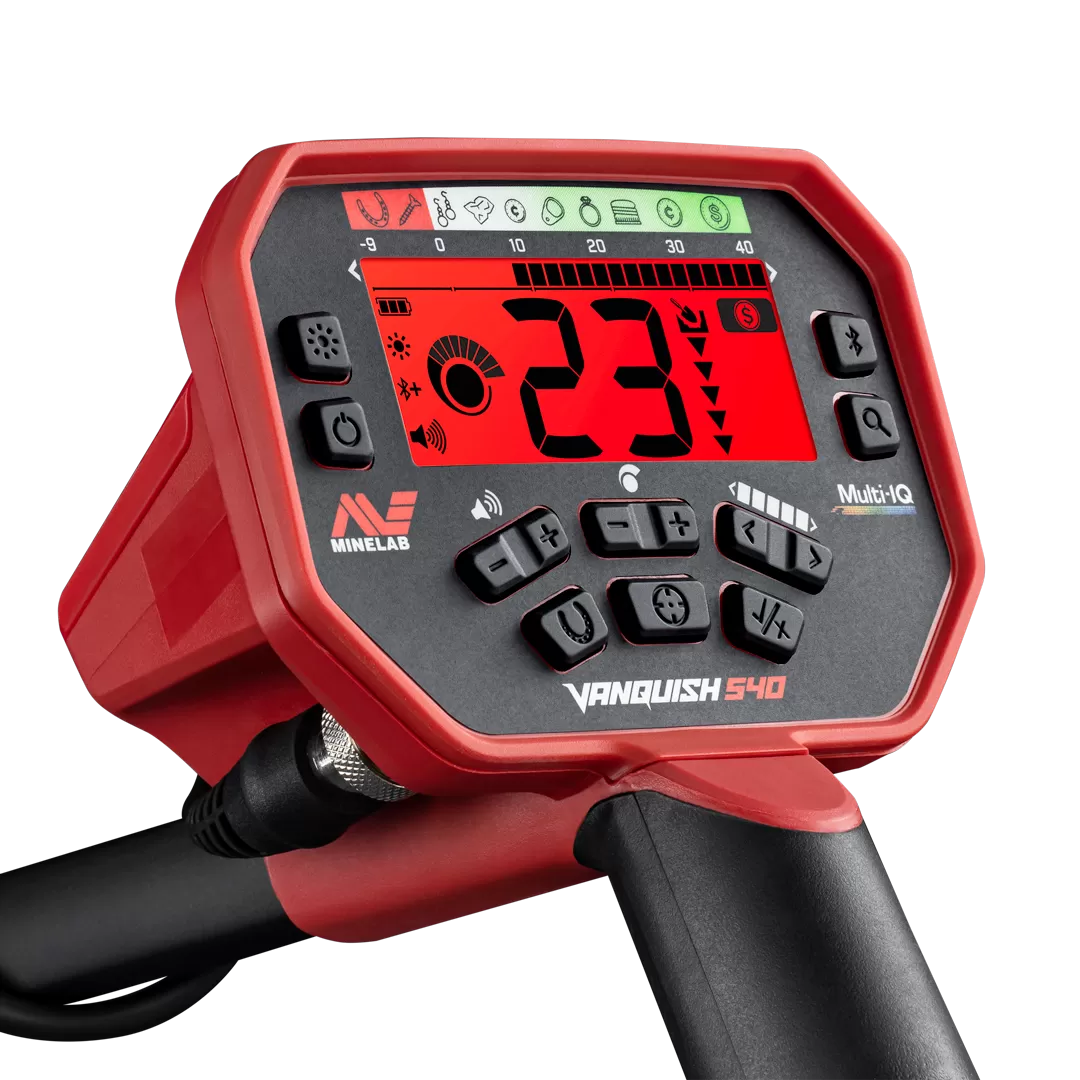

Minelab - Vanquish 540

The VANQUISH 540 metal detector is for the serious detectorist who demands ultimate performance. As if Multi-IQ technology, audio control, and pinpoint wasn’t enough the 540 also boasts iron-bias control, red LED backlight, and rechargeable batteries. What’s more, it comes with a waterproof 12” coil as standard for greater depth. No matter where the hunt takes you, the 540 is the ultimate detector that lets you detect on your terms.

Minelab Vanquish 540 is the upper end of the new Vanquish series. With advanced technology not found in more expensive machines and turn on and go usability combined with a lightweight, compact design, this is the ultimate machine for the beginner to intermediate detectorist and a serious back-up for the expert. The 540 model comes with the larger V12 search coil as standard, giving improved depth. Offering 3 pre-set detecting modes plus pin-point and all metal modes the Vanquish 540 will take your detecting to the next level. With additional iron bias control and 25 discrimination segments, you have fine control to decide the metals you accept, while an All Metal shortcut button lets you quickly accept everything.

The Vanquish 540 also includes a red back-light display, headphones, rain cover, arm strap, skid plate, and Bluetooth aptX low-latency wireless audio capability, all for under £400.



All Terrain Metal Detecting

VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver control over what metals you want to accept or reject.



Detect Modes

Now anyone can harness the unrivaled power of Multi-IQ, with easily selectable pre-set detecting modes, already set up and tested by Minelab experts. There is no need to learn the complexities of various settings, the hard work has been done for you. Simply select one of the four Search Modes — Coin, Relic, Jewellery, or Custom — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Search Mode.



Simultaneous Multi-Frequency

There are a few detectors on the market that claim to be multi-frequency, but they actually only switch between single frequencies, operating on just one at a time. Probably the most exciting feature of the Vanquish 540, which puts it way ahead of others in its price range (and above), is the inclusion of Minelab's groundbreaking Multi-IQ technology seen on Minelab's Equinox series machines, the world's best-selling metal detectors of 2018/2019, and also the first detectors to offer true simultaneous detection of multiple frequencies. All the Vanquish Series detectors operate on three frequencies, low, medium, and high simultaneously, giving you the best of all worlds whatever you are searching for.

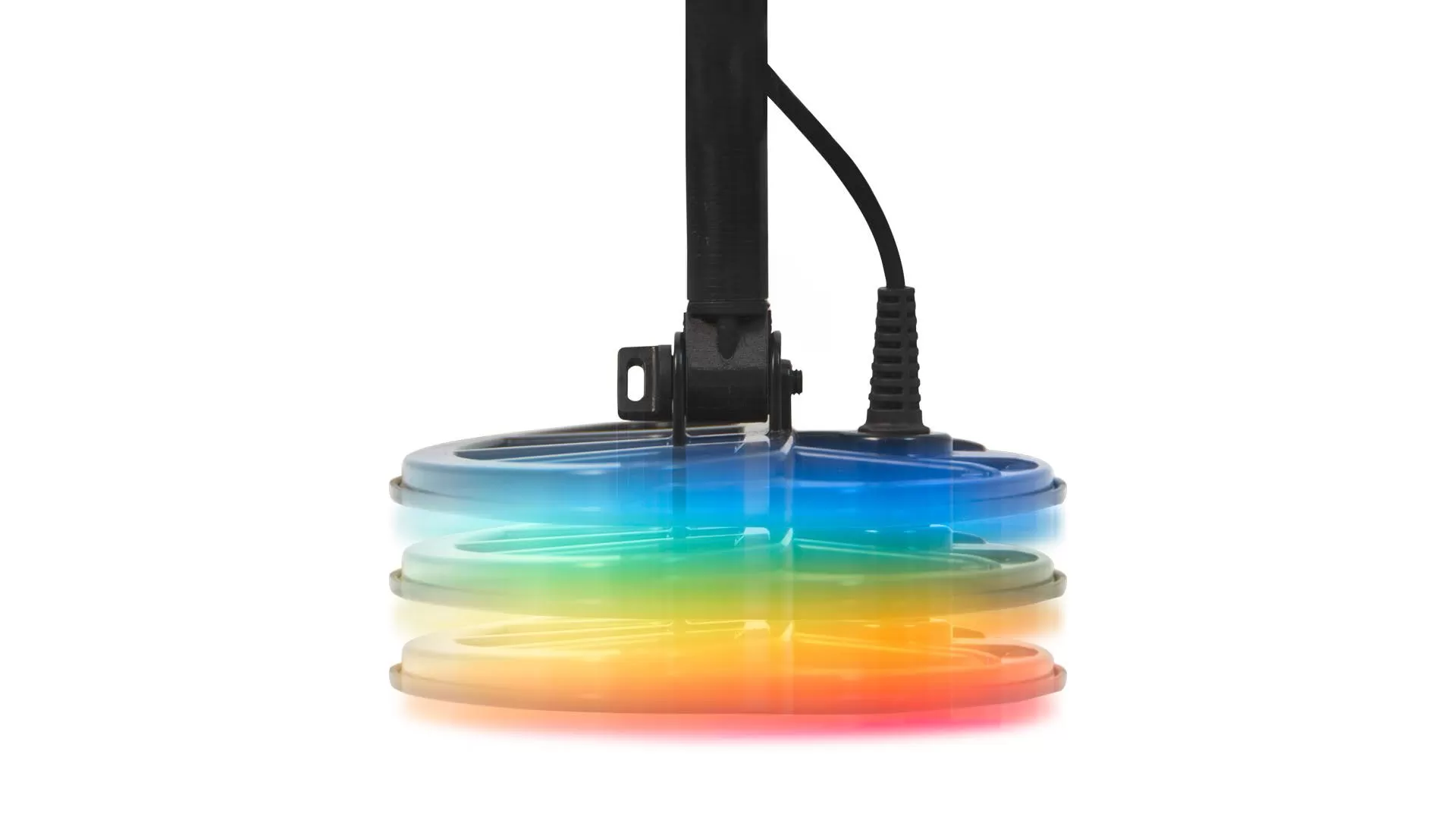

The Vanquish 540 operates across three simultaneous frequencies.

Multi-IQMulti-IQ

The real intelligence of the system is that the Multi-IQ processing will collate and compare the signals from all operating frequencies, analyzing the similarities and differences between them to get a clearer picture of what's really down there. This gives you better target ID and discrimination at greater depth, and the versatility to perform in a wider range of ground types, handling mineralisation, wet sand, etc. That means you can find and identify targets that a single frequency will struggle with.



Minelab Vanquish 540 Features

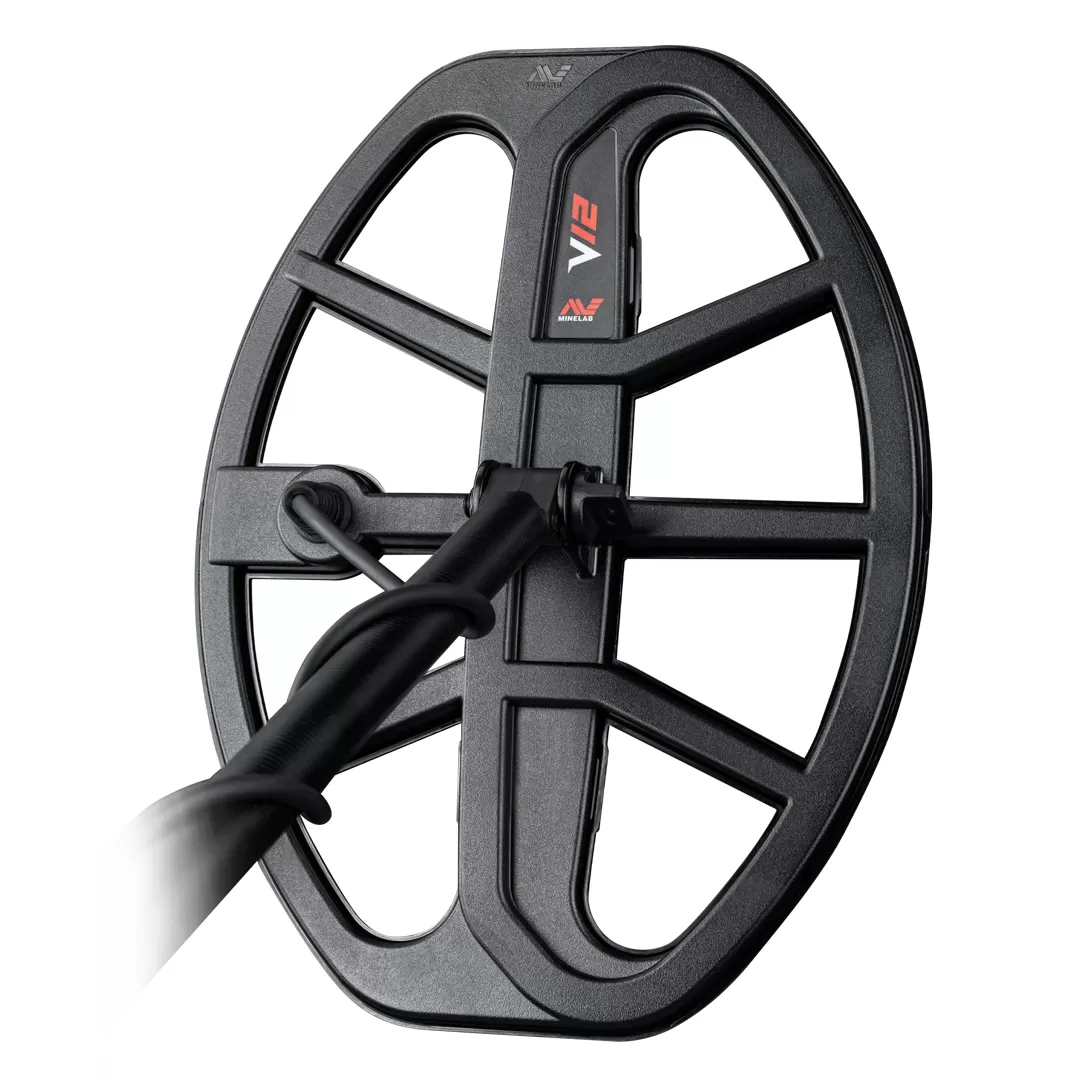

Included V12 Coil

Included V12 Coil
Cover more ground and search deeper with the V12 12”x9” V12 coil included as standard.

Waterproof Design

Waterproof
The Vanquish has waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with optional Rain Cover).

Audio Control

Audio Control
Automatic noise canceling, lag-free audio response and 10-volume settings put you in control.

Pinpoint Mode

Pinpoint Mode
Included pinpoint mode to help you locate targets with extreme precision.

Iron Bias

Iron Bias Control
More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.

Backlight

Backlight
Red LED Backlight to help low-light vision

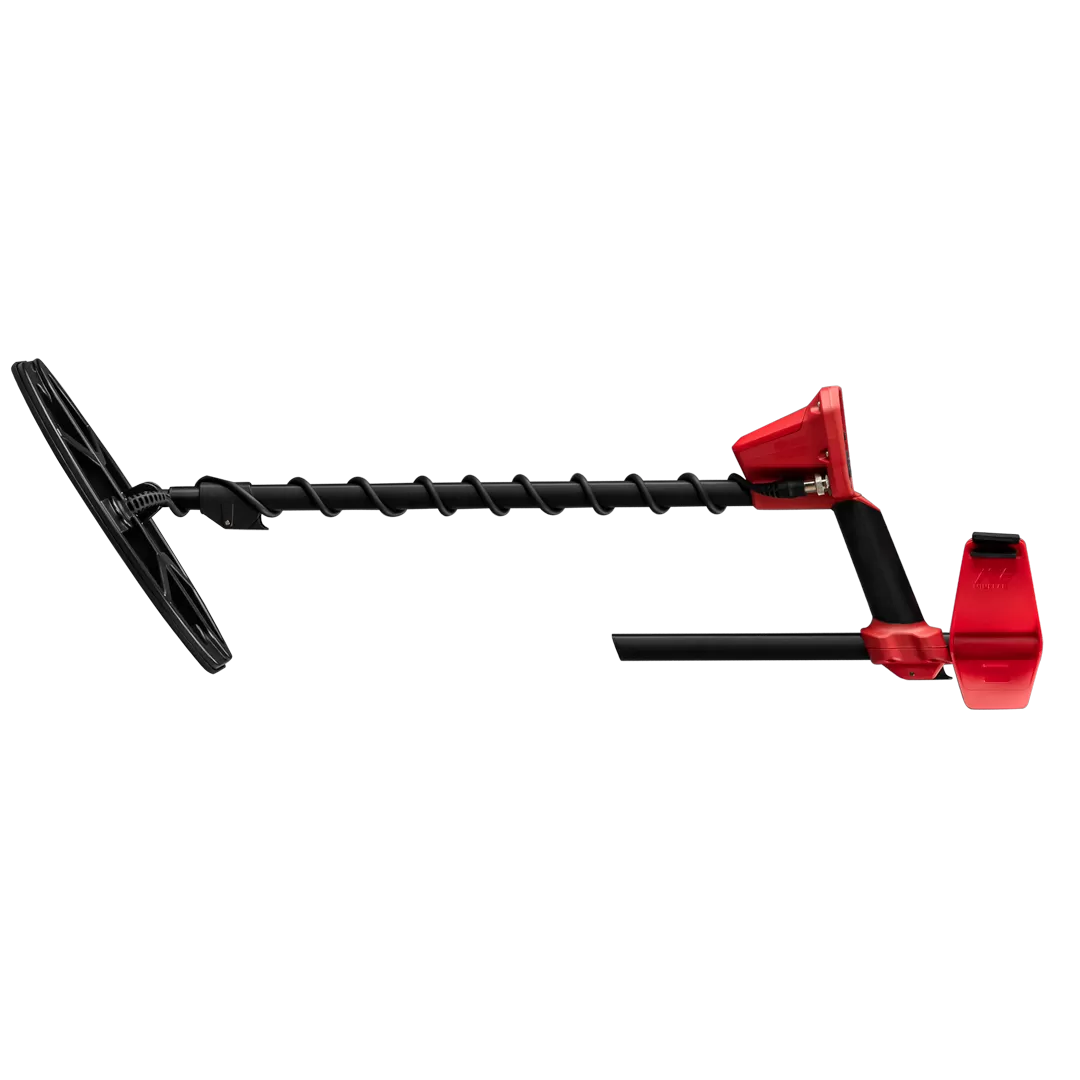

Pack & Carry

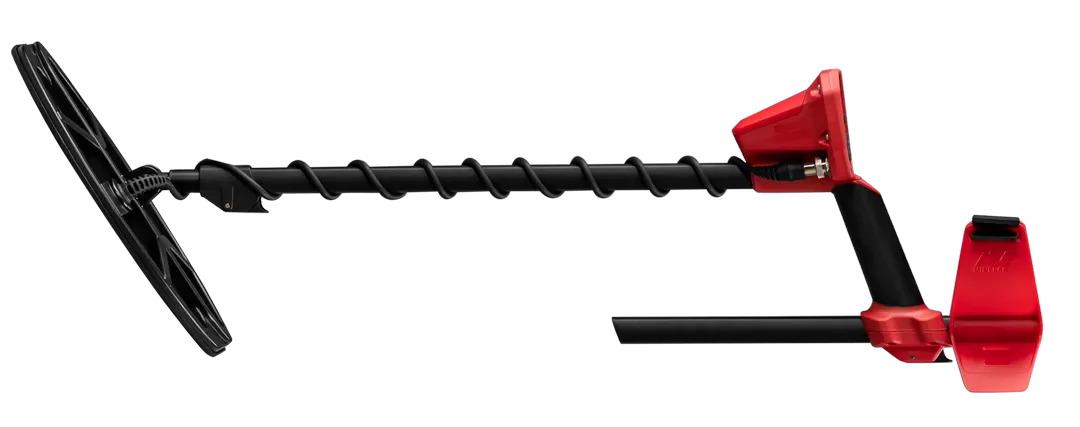

1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.

Pack and Carry

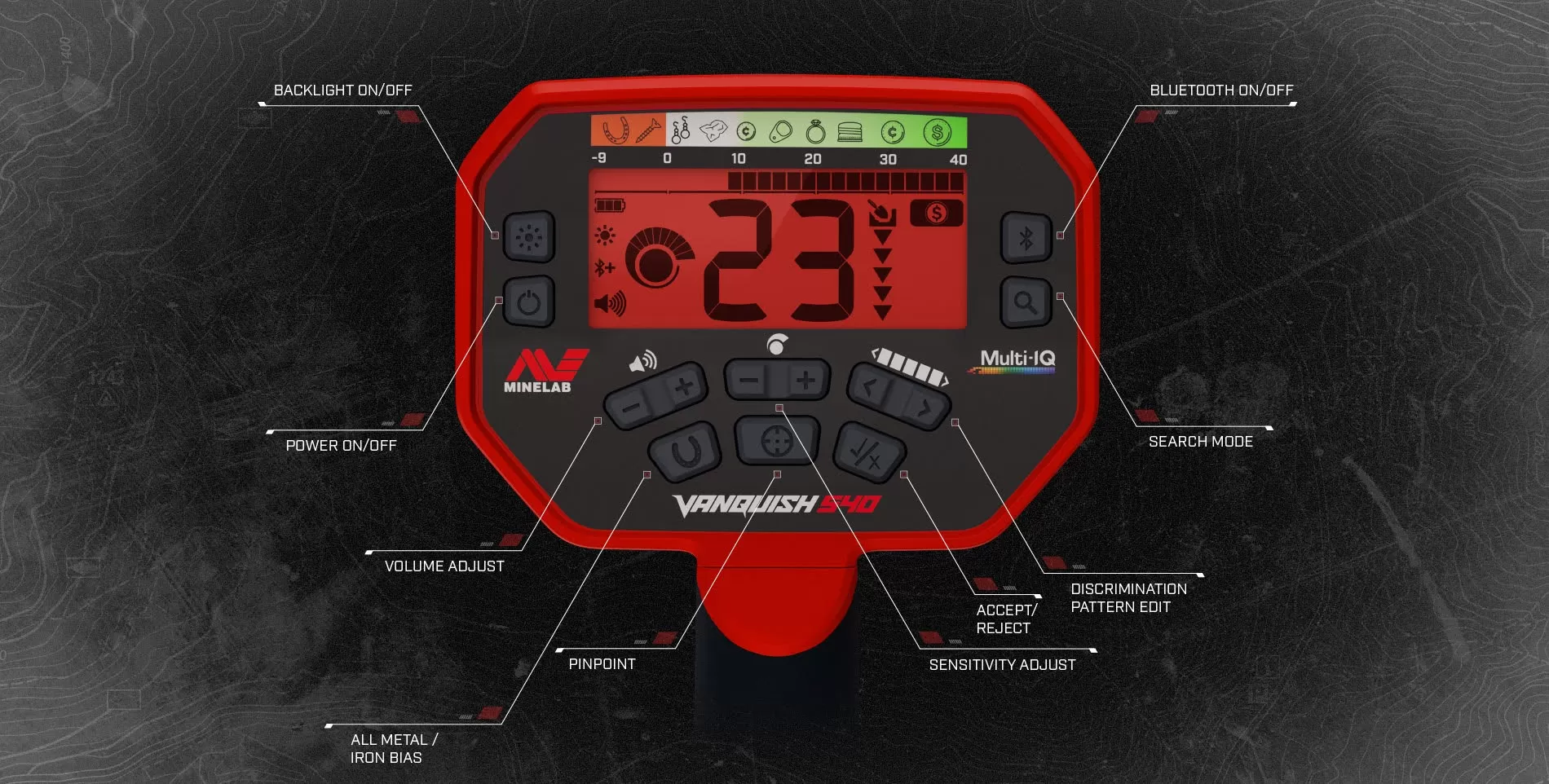

Vanquish 540 User Interface

Vanquish 540 User Interface

Using the Vanquish 540 user interface, you can:

  • Turn On/Off Power
  • Turn Backlight On/Off
  • Adjust Volume
  • All Metal Mode
  • Iron Bias High/Low
  • Pinpoint Mode
  • Adjust Sensitivity
  • Accept/Reject Targets
  • Discrimination Segment Edit
  • Change Search Mode
  • Turn Bluetooth On/Off



Vanquish 540 Package Contents

  • The Minelab Vanquish 540 Multi-Frequency Metal Detector

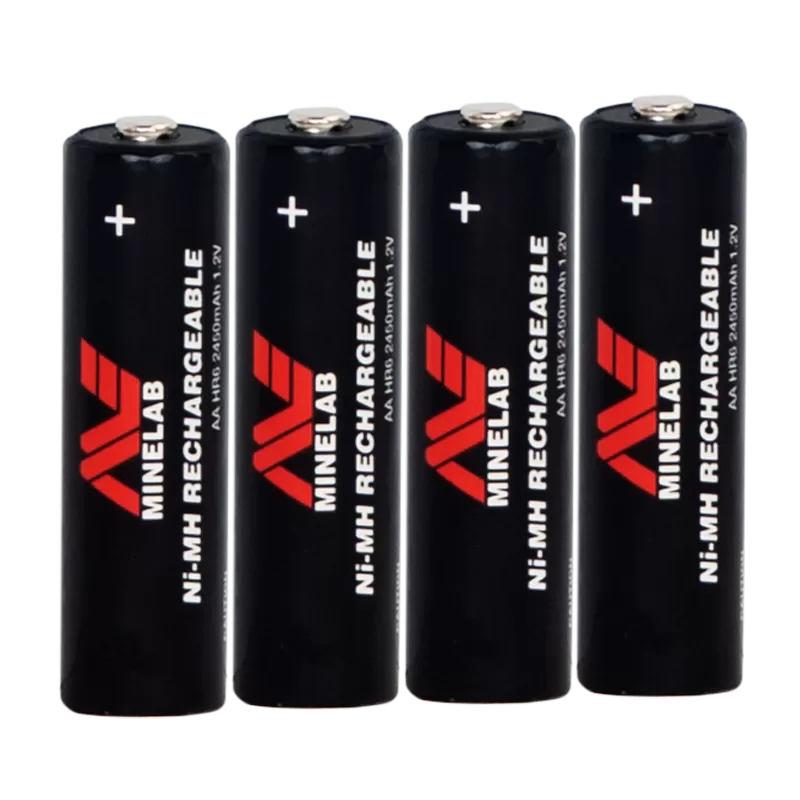

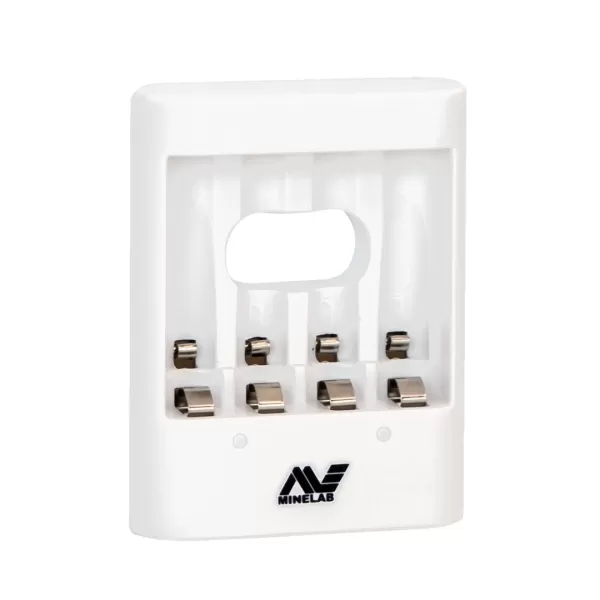

  • 4 x AA NiMH rechargeable batteries & charger
  • V12 (12 x 9" DD) Waterproof Search Coil
  • V12 Coil Cover

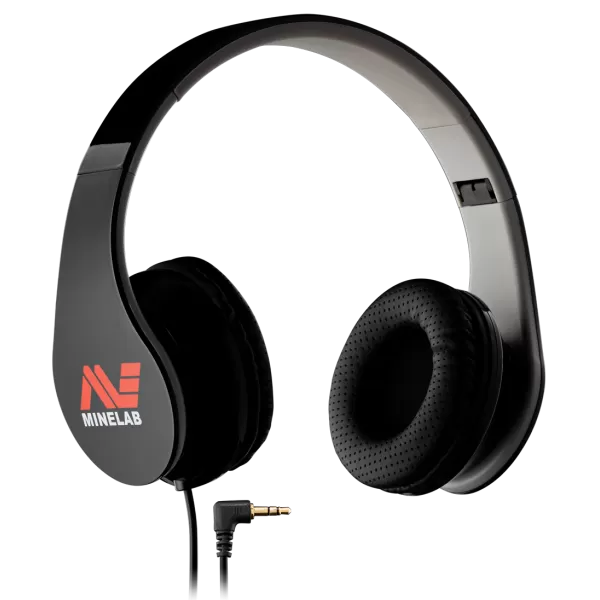

  • Wired Headphones

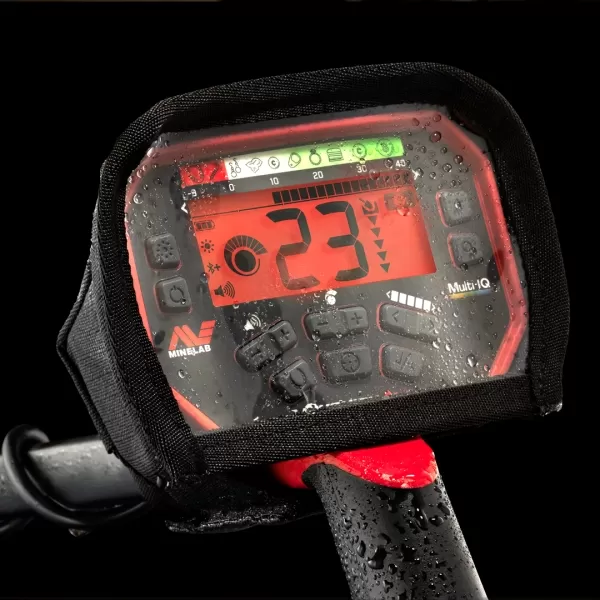

  • Control Box Rain Cover
  • Arm Strap
  • Getting Started Guide



Minelab Product Videos

What is Multi-IQ?

Vanquish Series Introduction Video



Product Manuals & Brochures

Vanquish 440/540 Getting Started Guide

Vanquish 440/540 User Guide

Vanquish Series Brochure



Learn more about the Vanquish 540 on Minelab's official website.



Our Expert Option

The Vanquish 540 really is a great machine for detecting inland and on the beaches, powerful but simple enough for beginners to use and also experienced detectorists too. The added Iron Bias control helps you to get in between those trashy ferrous iron targets and retrieve the non-ferrous targets in iron-infested sites. You can also change and lower the volume of the iron tone so that when you are searching in all metal mode you are not overwhelmed by it, this helps to pick out the nonferrous targets when in busy/trashy areas. The 12" elliptical coil is great for covering more ground and can gain greater depth if the ground conditions allow it.

The only downside to the standard Vanquish 540 is that it comes with wired headphones although you can later buy the wireless ML80 headphones for it. We do recommend if your budget allows it, upgrade from this to the 540 Pro-Pack, this includes the low latency ML80 wireless Bluetooth headphones which really make a difference to your metal detecting experience every time you go to dig a hole. It also comes with an extra 8 x 5-inch search coil.

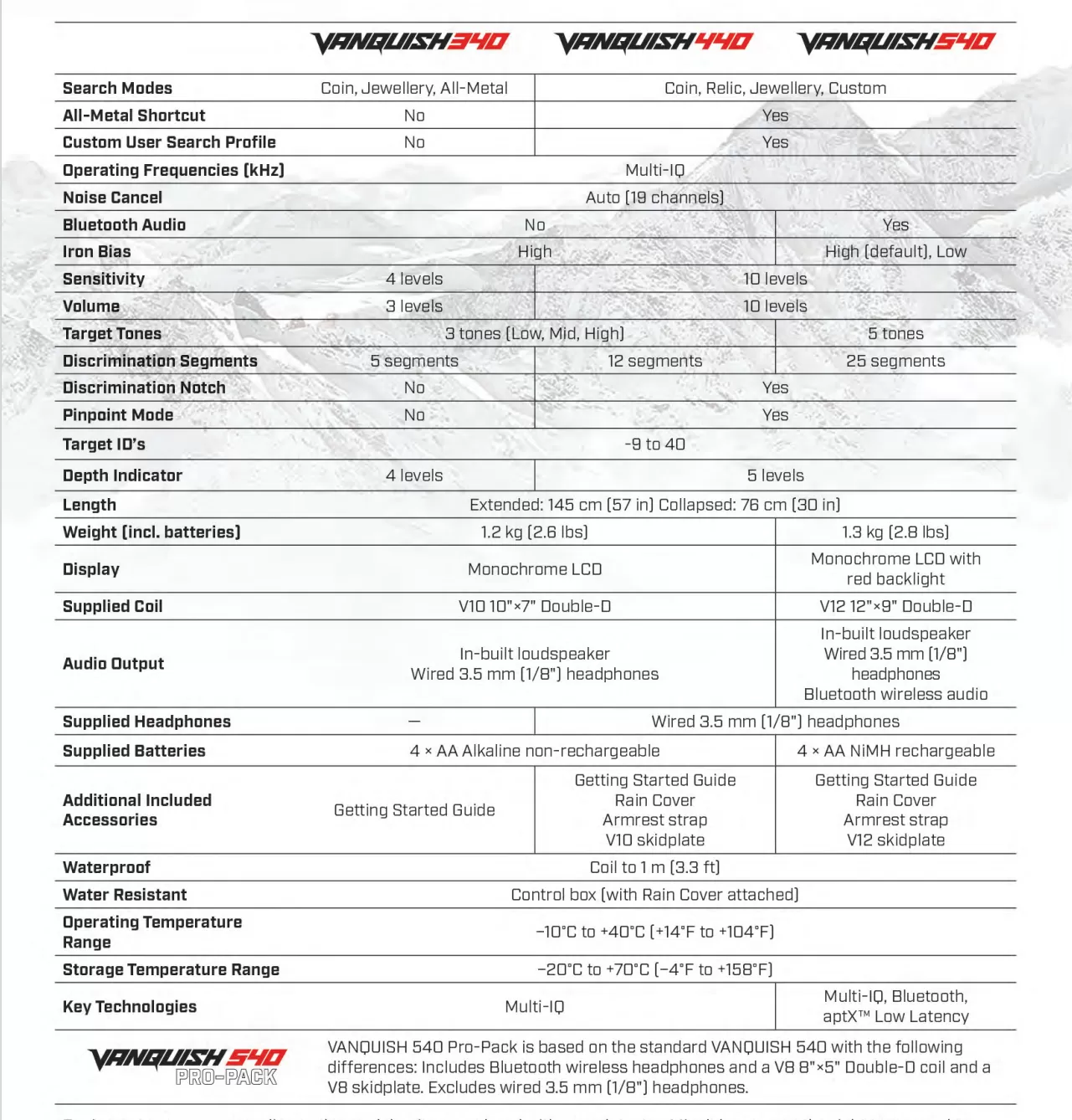

Minelab Vanquish Comparison Guide

Vanquish Series Comparison Guide



Need Any Help?

We have such a passion for this hobby that we will always give our honest opinion to you when buying a new metal detector or accessory, be it for yourself as a beginner or expert, or for your child entering this great hobby for the first time. If you need advice on anything related to metal detecting just give us a call on 01726 458614 or email us through our contact us page.

Technical Specs

Brand:
Minelab Metal Detectors
Product Type:
Multi-Frequency Metal Detector
SKU:
3820-0003
Operating Frequencie(s):
Low, Medium & High Simultaneously
Search Modes:
Coin | Jewellery | Relic | All Metal
Custom User Profiles:
Yes
Target ID's:
-9 to 40
Target Tones:
5 Tones
Target Volume:
10 Levels
Threshold Level:
Fixed
Threshold Pitch:
Fixed
Discrimination Segments:
25 Segments
Iron Bias/Iron Filter:
Adjustable High/Low
Sensitivity Settings:
10 Levels
Ground Balance:
Auto
Pinpoint:
Yes
Depth Indicator:
5 levels
Noise Cancellation:
Auto
Backlight:
Yes
Display:
Monochrome LCD
Audio Output:
In-built loudspeaker 3.5mm (1/8") headphones Bluetooth wireless headphones
Headphones:
Wired headphones 3.5mm jack (non waterproof)
Search Coil(s):
Waterproof 12"x9" Double-D coil
Waterproof:
Coil to 1m/3-feet
Weight:
2.8lbs (1.3kg)
Length:
Extended: 1450mm (57") Collapsed: 760mm (30")
Battery:
4 x AA NiMH rechargeable
Key Technologies:
Multi-IQ, Bluetooth, aptx™ Low Latency
Warranty:
3 Years control box and search coil
