Minelab Manticore Metal Detector

In stock
5.00
(2 reviews) Write a review
3228-0200
Price in points:44976 points
£1,79900
(£1,49917 Ex. VAT)

Limited Offer - Choose a FREE 15" Minelab M15 Coil or Minelab Pro-Find 40 Pinpointer from the dropdown box when you purchase a Minelab Manticore!

+
Add to cart
Delivery Options
Payment Methods



  • PayPal
  • SagePay
  • Credit Cards
  • Debit Cards
Why Buy From us



  • Fast UK & EU Delivery Available
  • Free Delivery When You Spend Over £50
  • Help & Advice with New Machine Buying
  • A Family Run Business Who Cares
  • Minimum 1 Yr Manufacturers Warranty
  • No Quibble Returns Policy
  • 25 Years of Knowledge of the Hobby
+

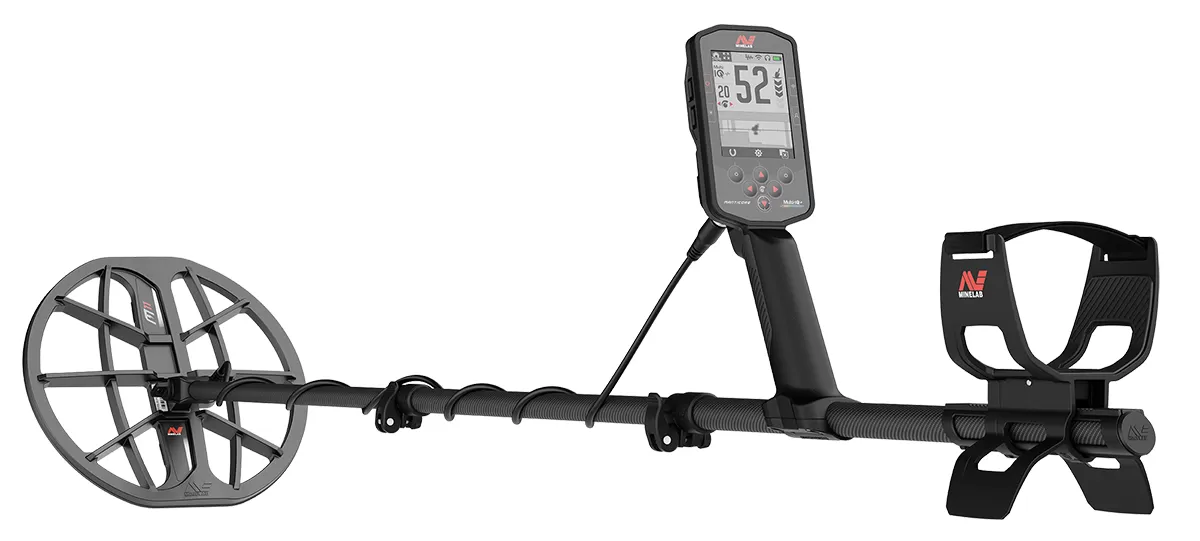

Minelab Manticore Metal Detector
In stock
5.00
(2 reviews) Write a review

Description

Minelab Manticore - The Perfect Beast!

Minelab - Manticore High Power Metal Detector

MANTICORE with Multi-IQ+ is the most powerful, fastest, and most precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivaled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.

Manticore finds targets faster, more clearly, and in even the most challenging environments. With impressive capabilities and technologies, nothing will go undetected. More effective than even the most high-end models in the market, Manticore brings power, precision, and accuracy to detecting in a way that wasn’t previously possible.



Minelab Manticore Features

MULTI IQ+

Minelab’s revolutionary technology has 50% more power than traditional models and is the highest-powered simultaneous multi-frequency machine on the market.

Multi-IQ+

High Power Simultaneous Multi-Frequency

Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With Multi-IQ you can operate across the full spectrum of frequencies simultaneously for maximum results.

Multi-frequency Range

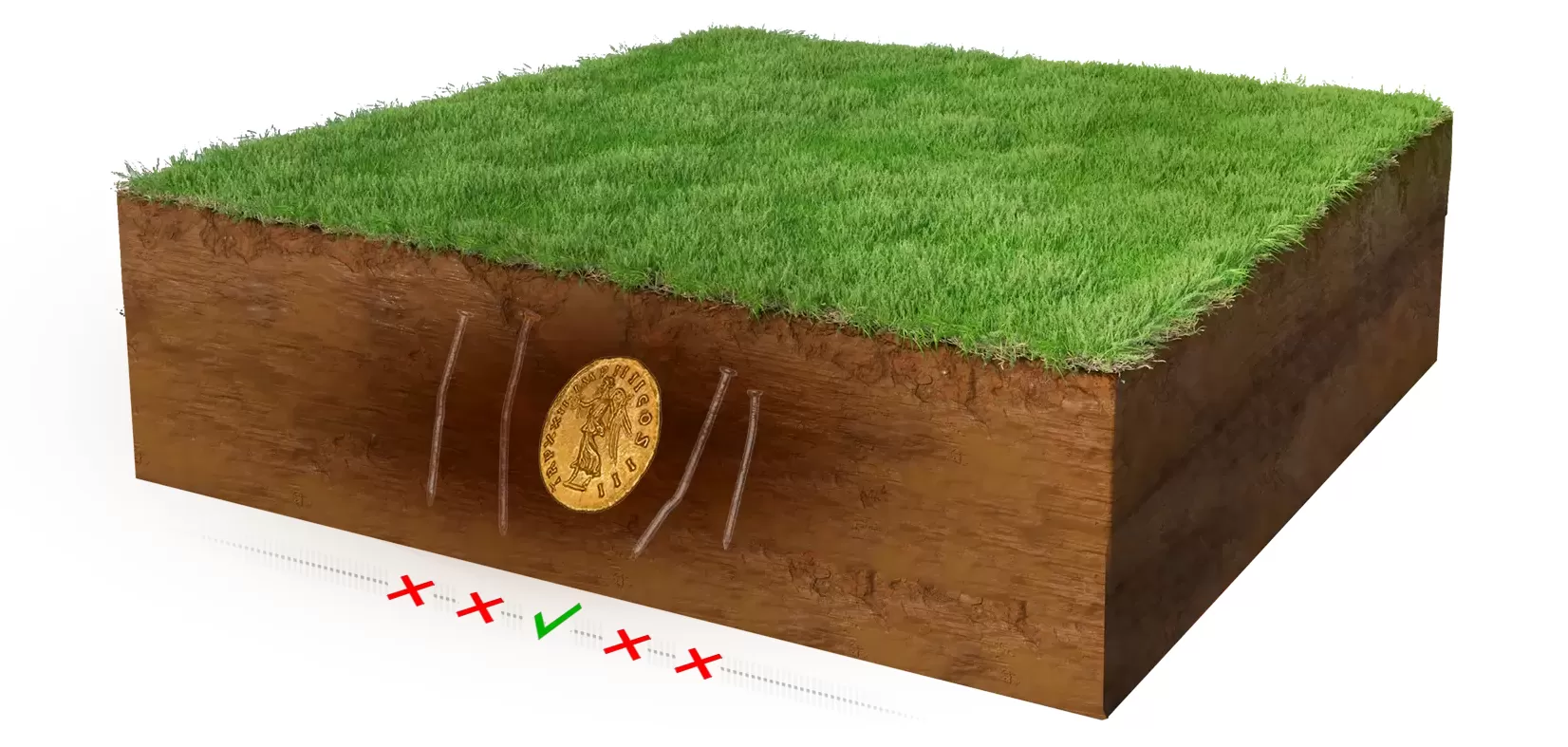

FAST RESPONSE

Identify your targets quickly and confidently to efficiently sort between trash and treasure with exceptional target separation performance.

Fast response

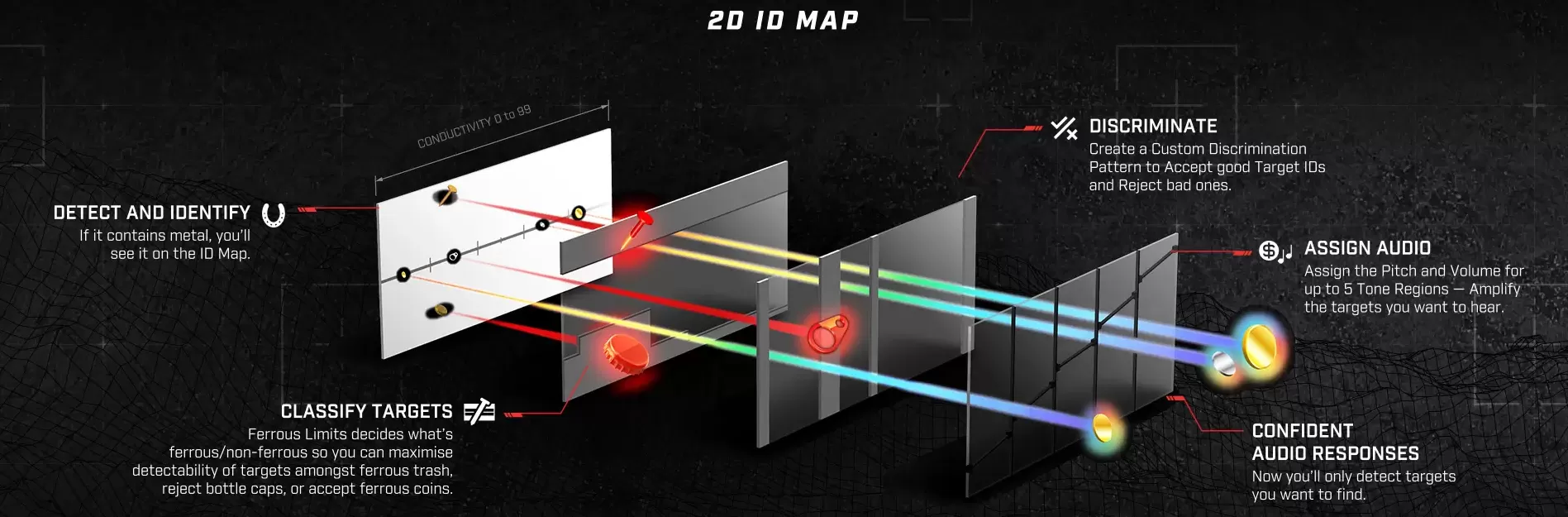

POWERFUL 2D ID MAP

Identify your targets with greater visual and audible target insights.

2 ID Map

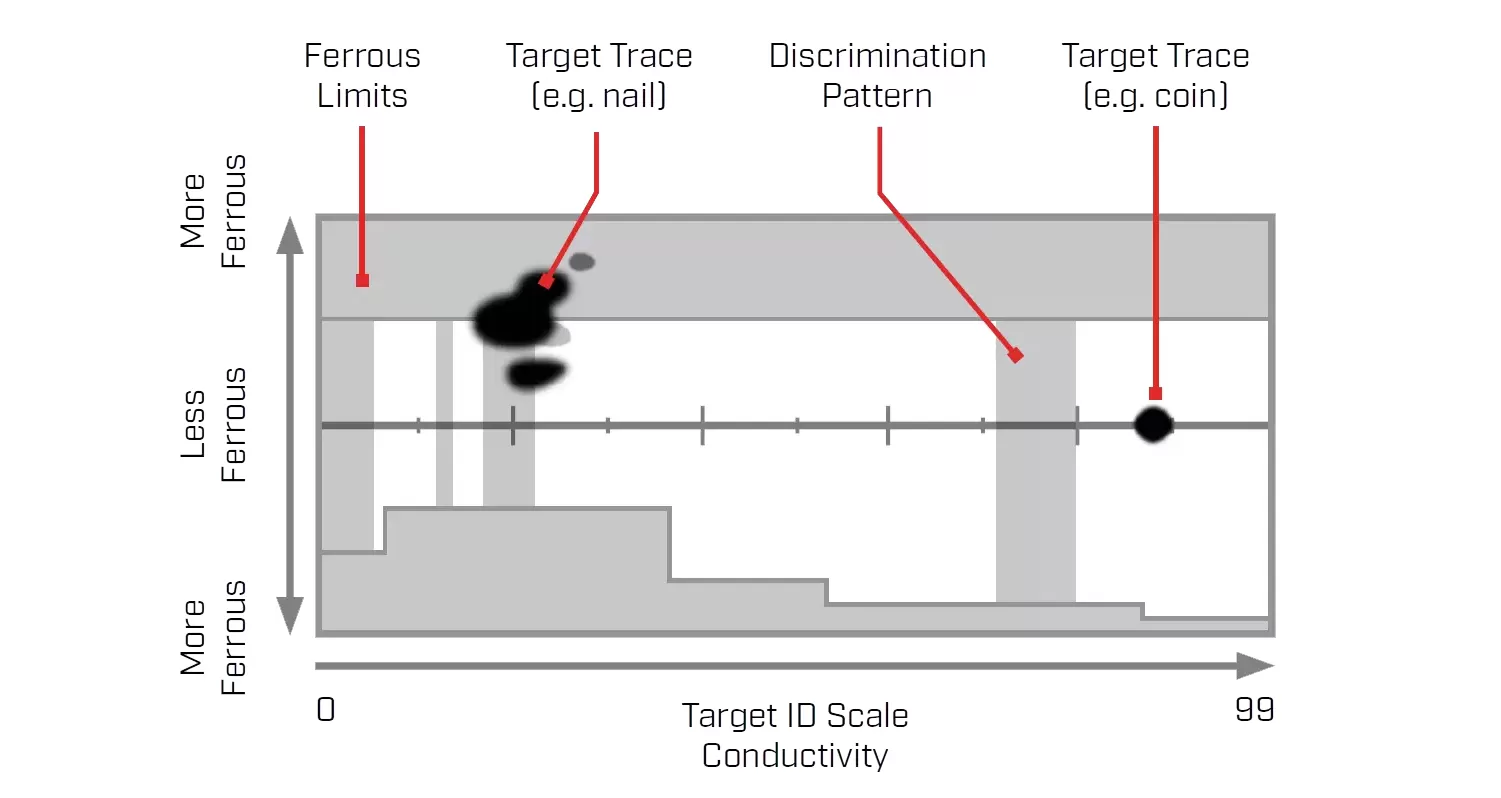

ENHANCED DISCRIMINATION

Exceeding expectations with every swing, MANTICORE delivers improved Target ID stability and close target separation. With customisable Ferrous Limits, you have unprecedented control to accept ferrous coins, reject complex ferrous targets, or dial in maximum target unmasking in iron.

Enhanced Discrimination



CLEAR AUDIO

Built-in external speaker allows for crystal-clear audio and comes with Low Latency Wireless Headphones.



AUDIO YOUR WAY

Take control of audio with MANTICORE. Hear target information the way you like it via superior audio controls including customisable target tones, suppression of Electromagnetic Interference (EMI) chatter and Continuous Pitch (VCO) audio with ferrous tones and genuine threshold detection tone.

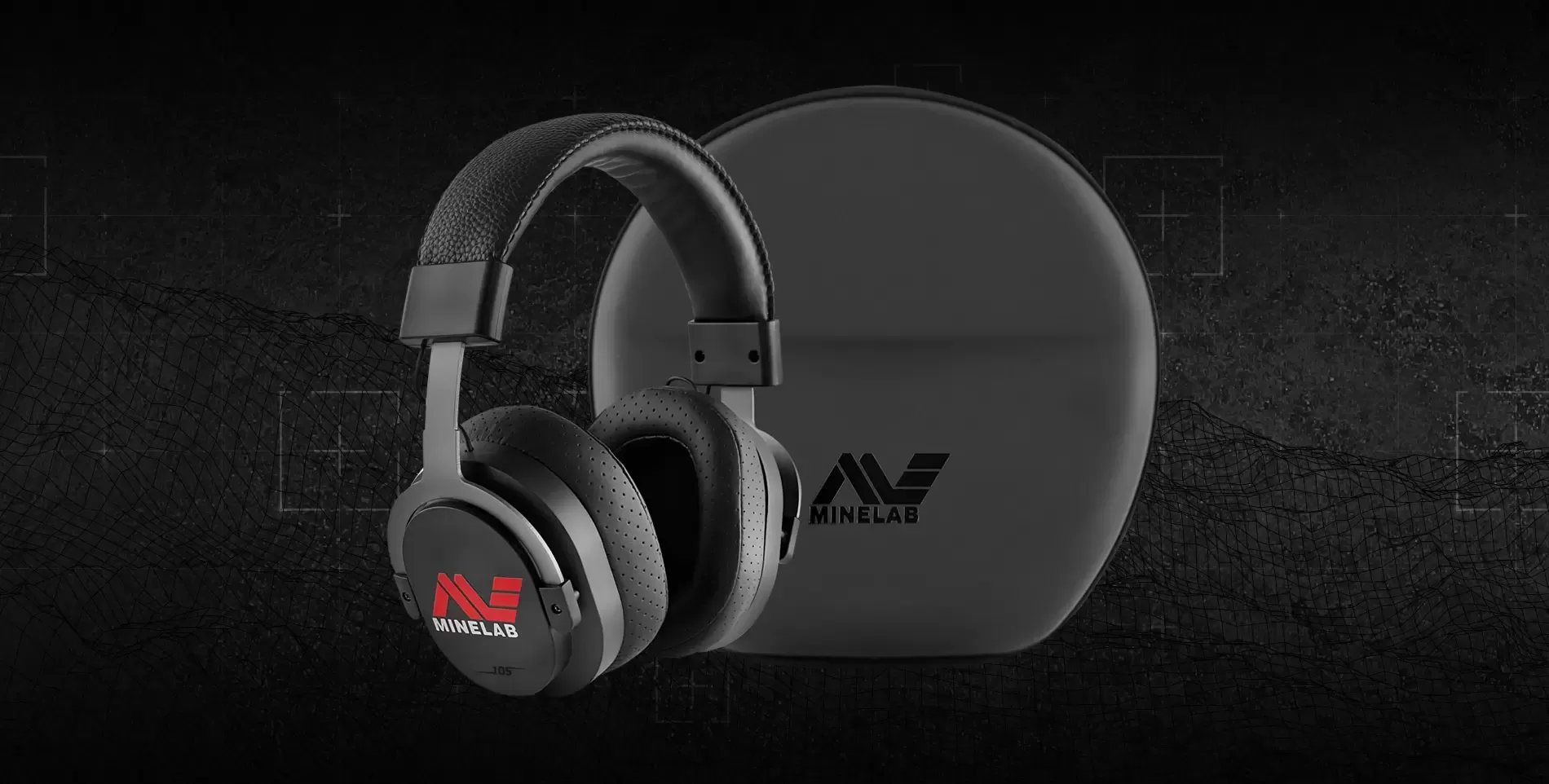

WIRELESS AUDIO

Clearly detect with audio controls set specifically for you in order to identify targets confidently, reduce noise and identify trash.



ULTIMATE SEARCH MODES

MANTICORE delivers over 10 customisable Search Modes including All-Terrain optimised for inland detecting; Beach optimised for sand, surf and seawater zones; and Goldfield optimised for detecting gold nuggets.



UNRIVALLED CONSTRUCTION & EXTREME WATERPROOF

Powerful yet lightweight, Manticore weighs only 1.3 kg (2.9 lbs.) and includes a three-piece, compact Carbon-Fibre shaft system. No terrain is off limits with MANTICORE — dive up to 5 m (16 ft) for underwater exploration (IP68 Rating) to find hidden targets others can’t reach.

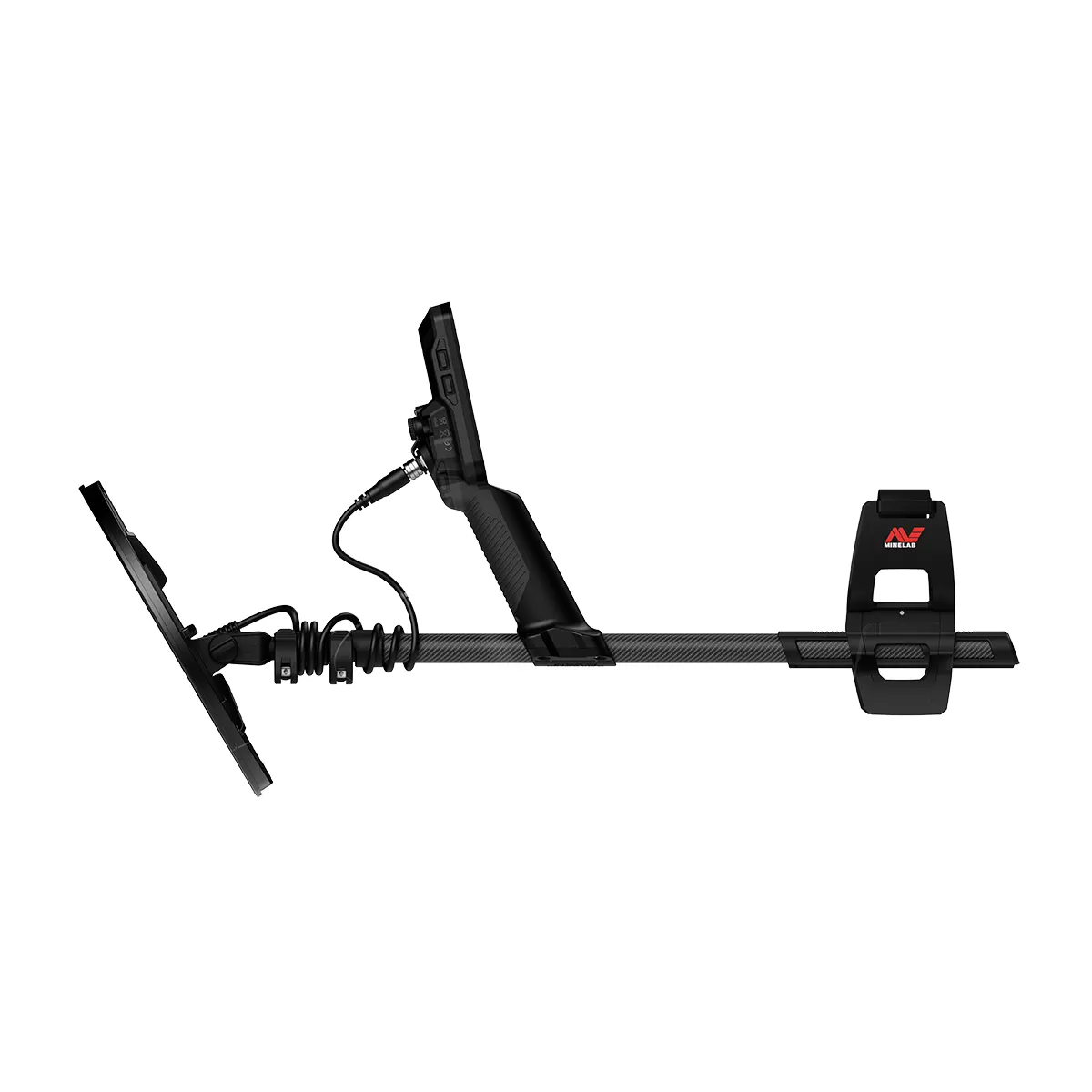

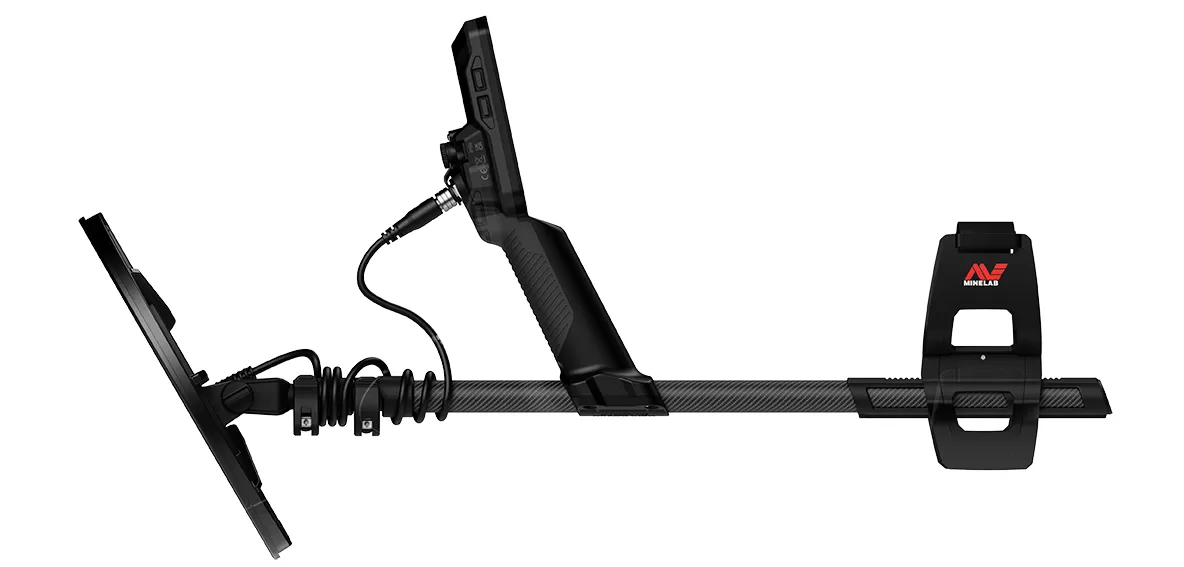

COMPACT & LIGHTWEIGHT

1.3 kg / 2.9 lb with an extended length of 1440 mm / 56.7 and a collapsible length of 630 mm / 24.8 inch.

Manticore Collapsed

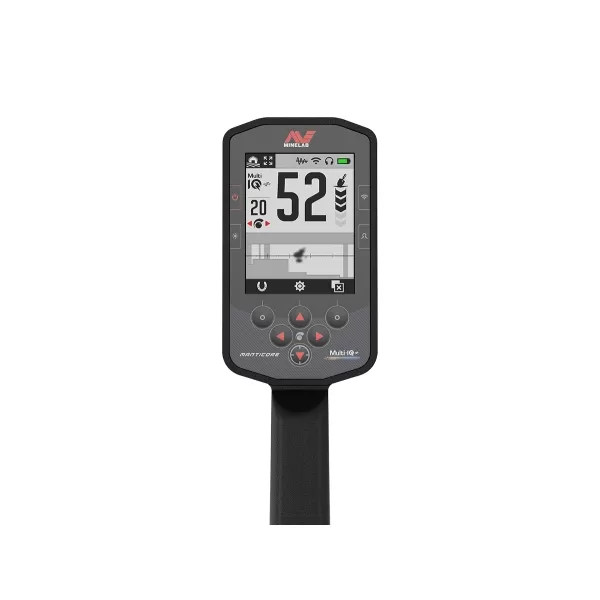

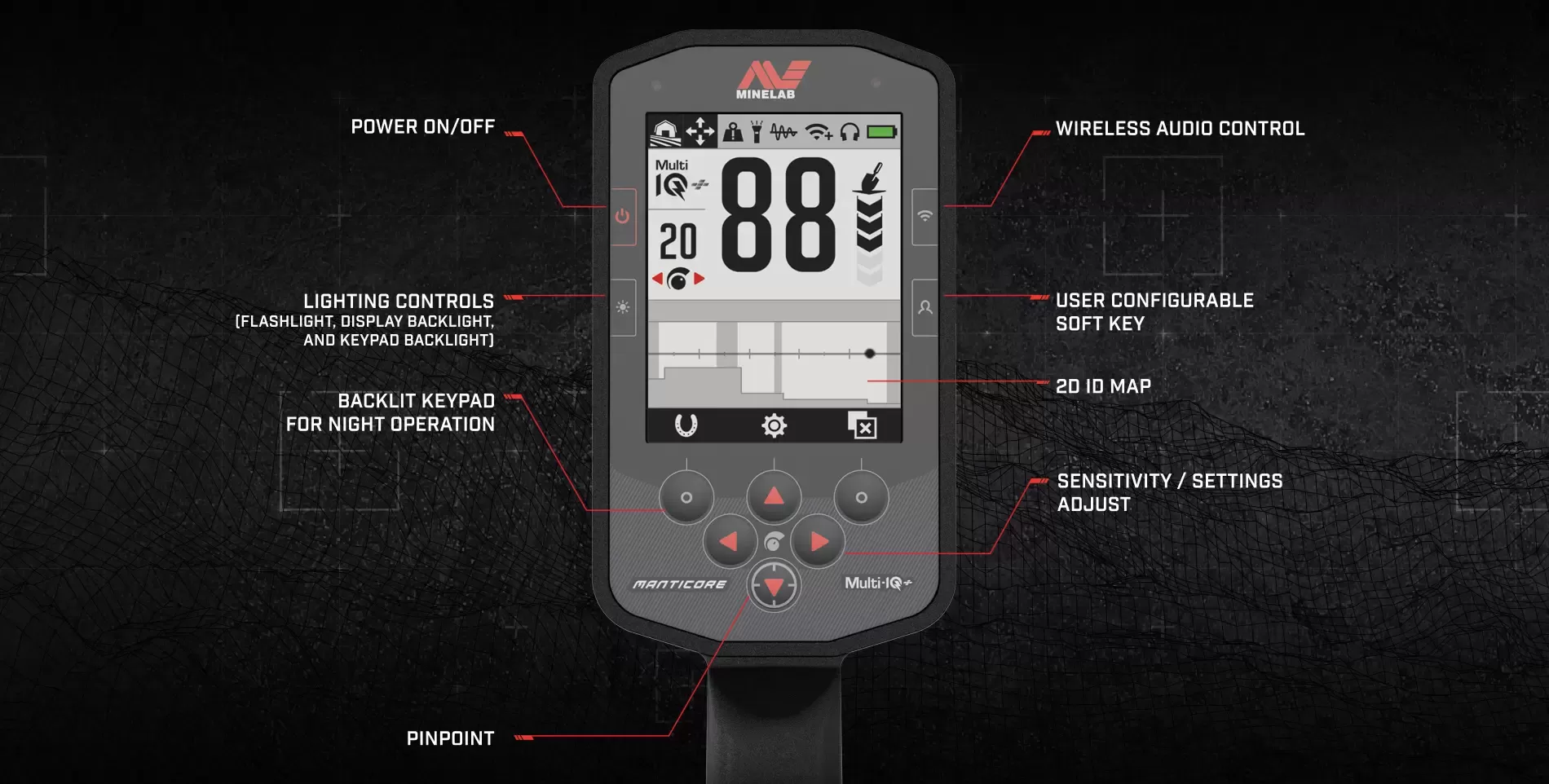

INTUITIVE CONTROL

The large LCD panel allows for easy viewing and clear navigation control. Having cutting-edge technology inside our Minelab machines is only half the story. Making MANTICORE’s power easy to access is equally as important. That’s why MANTICORE features a large colour screen and delivers the most intuitive user experience ever found on a detector.

Manticore User Interface



LIGHTING & VIBRATION

The daylight may have ended, but that doesn’t mean your hunt has to. With Control Pod Flashlight, Display Backlight with Auto Adjust, and Backlit Keypad, plus Handgrip Vibration, you can power on long after the sun has gone.



BOOSTED EMI IMMUNITY

In challenging environments, improved EMI rejection uses higher sensitivity to isolate targets. There may be a storm raging outside but inside MANTICORE it’s quiet and calm. Improved EMI rejection means it’s possible to operate using higher sensitivity whilst isolating target information — even in the most challenging environmental conditions.

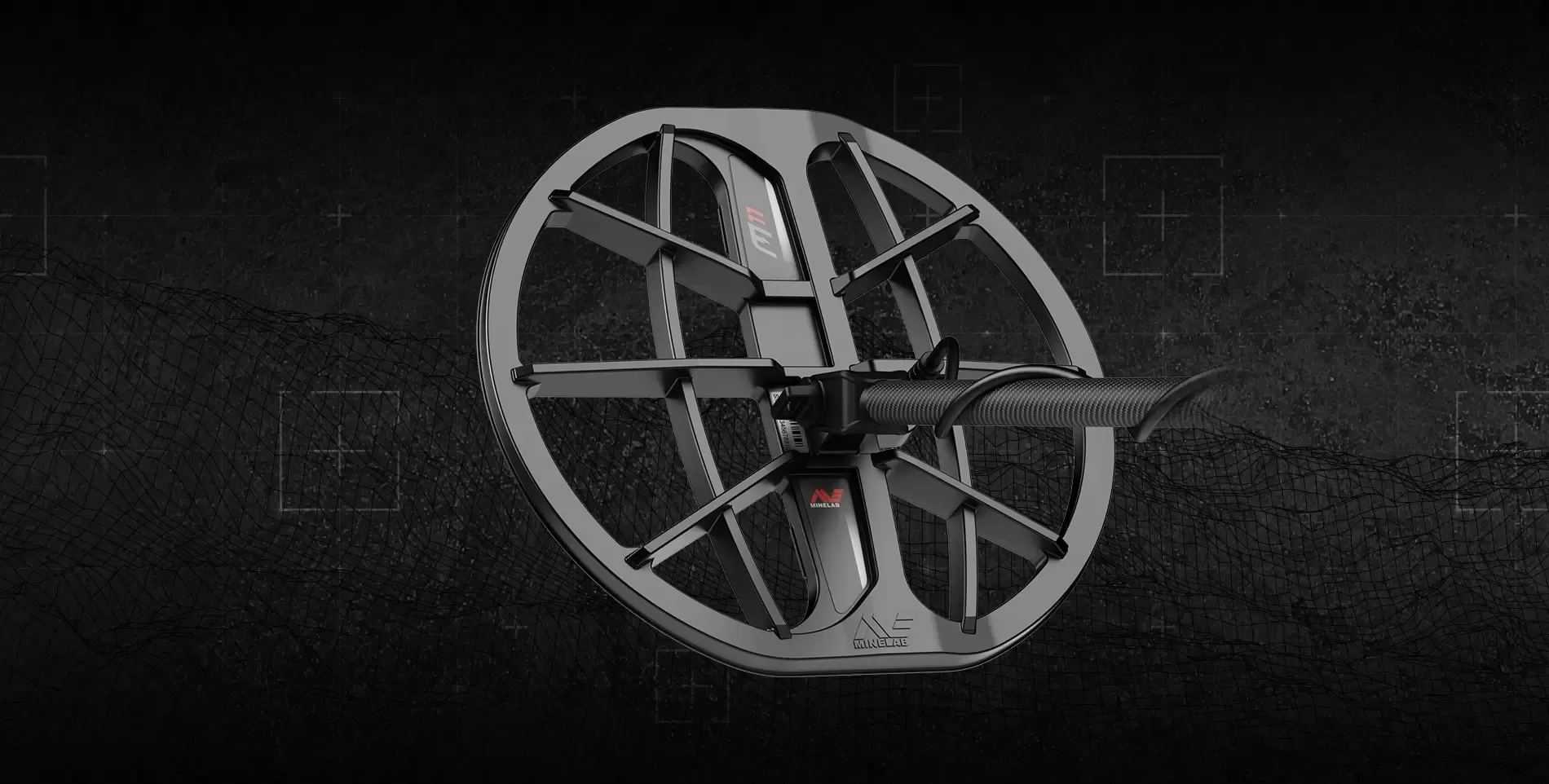

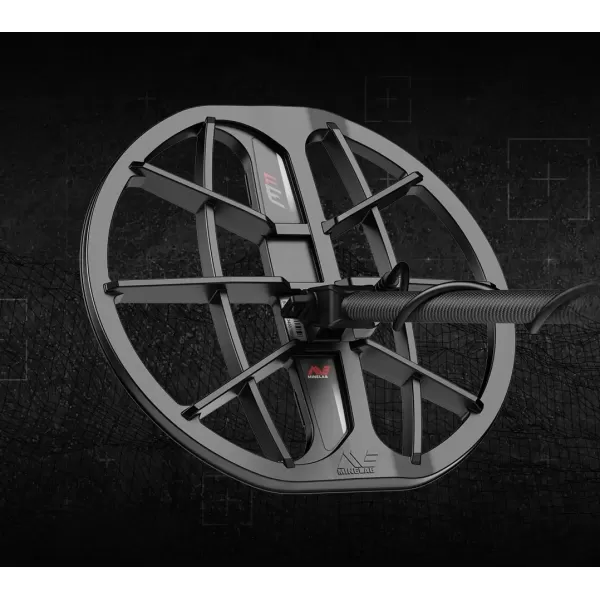

CHOICE OF COILS

Comes standard with the M11 (11" Round Double-D coil) and choose from M8 (8"x5.5" Elliptical Double-D) and M15 (15"x12" Elliptical Double-D) coils (sold separately).

Choice of Coils



BUILT TO LAST

A three-year warranty with software upgrade capability allows detection far into the future.



Other Key Technologies



Key Technologies


5FX8 - The Manticore offers 5 single frequencies of 5, 10, 15, 20 and 40 kHz, giving an expanded 8-times range of 5 to 40 kHz.

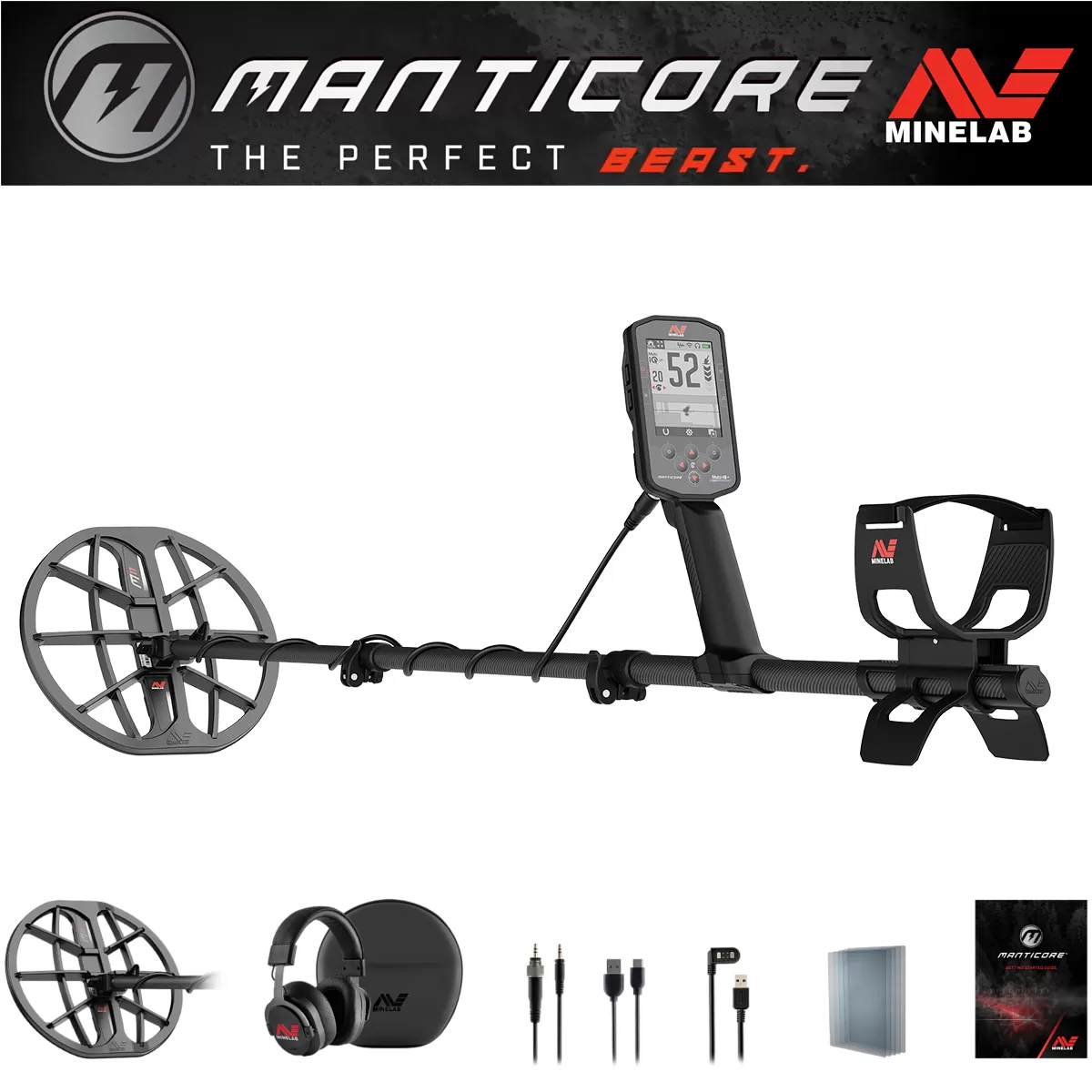

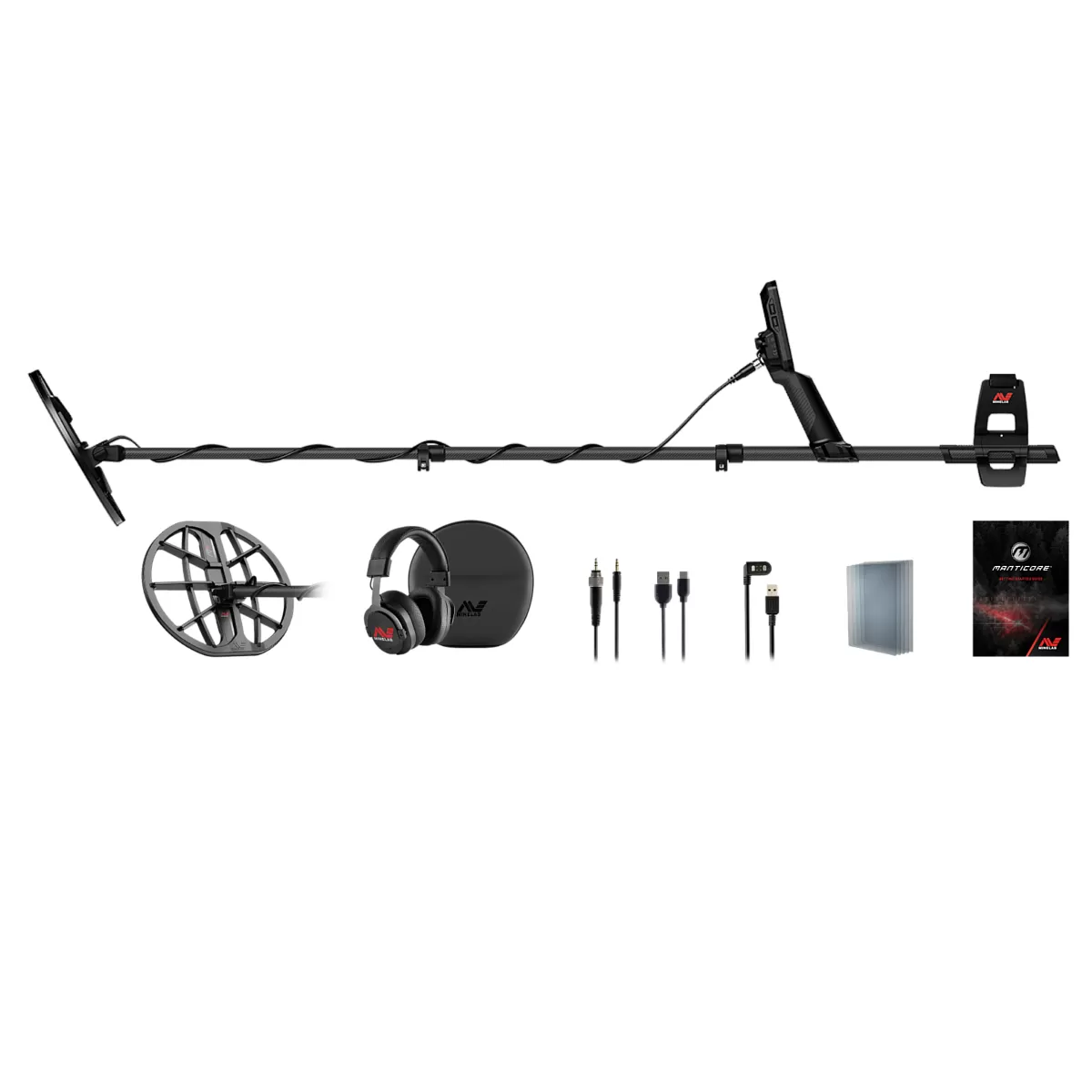

Manticore Package Contents

  • Minelab Manticore Multi-Frequency Metal Detector with M11 (11" Round Double-D coil)
  • Wireless Bluetooth / apt-X Low Latency headphones
  • USB charging cable with magnetic connector
  • Multi-language screen protectors
  • Getting Started Guide

Minelab Manticore Metal Detector

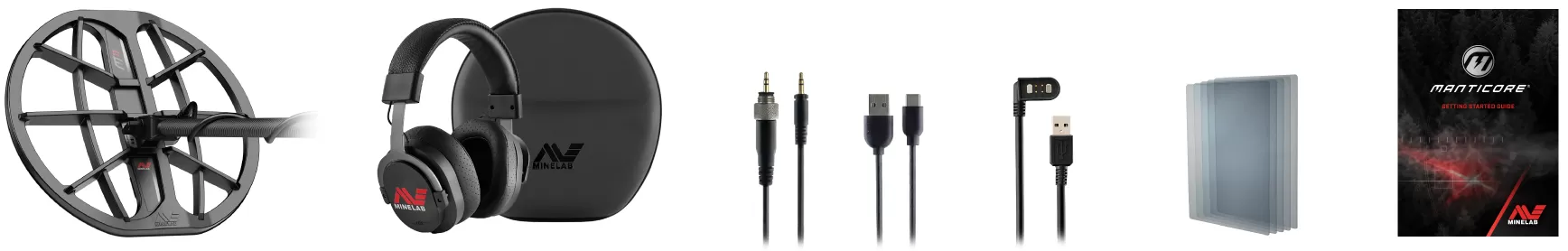

Minelab Manticore Package Contents




Minelab Product Videos

Videos are available on Minelab's YouTube channel here.



Product Manuals & Brochures

Manticore Getting Started Guide



Need Any Help?

We have such a passion for this hobby that we will always give our honest opinion to you when buying a new metal detector or accessory, be it for yourself as a beginner or expert, or for your child entering this great hobby for the first time. If you need advice on anything related to metal detecting just give us a call on 01726 458614 or email us through our contact us page.

Technical Specs

Brand:
Minelab Metal Detectors
Product Type:
Multi-Frequency Metal Detector
SKU:
3228-0200
Operating Frequencie(s):
Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
Search Modes:
Customisable - All-Terrain (5), Beach (4), Goldfield (1)
Custom User Profiles:
10
Target ID's:
Conductive: 0-99 with ferrous indication
Target Tones:
1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
Target Volume:
0 to 25
Threshold Level:
0 to 25
Threshold Pitch:
1 to 50
Tone Pitch Adjustable:
1 to 50
Iron Bias/Iron Filter:
yes
Sensitivity Settings:
Conductive: 0-99 with ferrous indication
Ground Balance:
1 to 35
Pinpoint:
Yes
Depth Indicator:
5 levels
Frequency Shift:
Yes
Noise Cancellation:
Auto, Continuous Auto, Manual (-9 to +9)
Backlight:
Display Backlight Manual (1 to 10), Auto Adjust Keypad Backlight On, Off
Display:
Colour LCD
Audio Output:
Speaker | 3.5 mm (1/8") headphones Wireless low latency headphones
Headphones:
Minelab ML-105 wireless low latency headphones (non waterproof)
Search Coil(s):
11-inch round Double-D coil with skidplate (waterproof to 5m / 16ft)
LED Flashlight:
Low, Medium, High, Off
Vibration:
Yes
Waterproof:
Waterproof to 5 m / 16 ft, IP68
Weight:
1.3 kg / 2.9 lb
Length:
Extended Length 1440 mm / 56.7 inch Collapsed Length 630 mm / 24.8 inch
Battery:
Internal rechargeable Lithium-ion battery
Key Technologies:
Multi-IQ, 5Fx8, Wi-Stream, Bluetooth, aptX™ Low Latency
Warranty:
3 Years

Reviews

Average Star Rating:
5.00 (2 reviews Total)
  • 5 stars
    2
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
Have you used the product?
Tell us something about it and help others make the right decision
Show reviews with:
4 stars (0 reviews)
3 stars (0 reviews)
2 stars (0 reviews)
1 star (0 reviews)
Product variant reviewed:
Advantages
Absolutely amazing machine, very informative and helpful customer service
Definitely recommend
Comment
Good investment,
Verified purchase
Product variant reviewed:
Advantages
This is a great metal detector, a big upgrade from the Minelab Explorer II I had 20 years ago, it does cost a few more pounds than many other detectors, but in my view it's 100% worth saving your pennies.

The main things I like, are the full colour screen which shows iron as red numbers, and the 2D display which gives you a third reference point other than sound and the ID - I find that using the Manticore when searching on land, I dig a lot less iron than before. Also, it’s very powerful, but in reality you can’t run the machine with full sensitivity.

I like to coin and beach hunt, and the Manticore will let you know about every target under your feet, it is a very high spec, performance machine.
Disadvantages
None that I can find.
Comment
The best of the best. Go get one, it will put a smile on your face.
